GST DC-9101E Conventional Combination Heat Photoelectric Smoke Detector
Online Ser...
 Service 1...

GST DC-9101E Conventional Combination Heat Photoelectric Smoke Detector

Product Details
Code GST C9101 Series Smoke detector
Spec DC24V Material Plastic
Color White Model GST C9101
Product Description

  • The detector has the advantages of both conventional photoelectric detector and rate of rise and fixed temperature heat detector.

  • It can also pick up fire with obvious rise of temperature such as alcohol flame, thus extending the application range.

  • 2 smoke sensitivity levels can be set. Heat detection is based on RR.

  • level 1 complies with EN 54-7. Heat part complies with EN 54-5.

Specific information

Operating Voltage

24VDC(16VDC~28VDC)

Standby Current

≤60μA

Alarm Current

≤55mA

Max. ripple voltage

2V(peak to peak value)

Alarm reset

Instant power down (2s Min, 1.0VDC Max)

Wiring

Two-wire, polarity sensitive.

Detector Class

A2R

Action Temperature

62℃

Environment Temperature

-10℃~+50℃

Relative Humidity

≤95%, non condensing

ngress Protection Rating

IP2X

Dimension

Diameter:100mm

Height: 54.5mm (with base)

Mounting Hole Spacing

45mm~75mm

Features

  • Strong environmental adaptability due to drift compensation

  • Self-diagnostic

  • Reed switch test

  • Fire LED allows 360° viewing

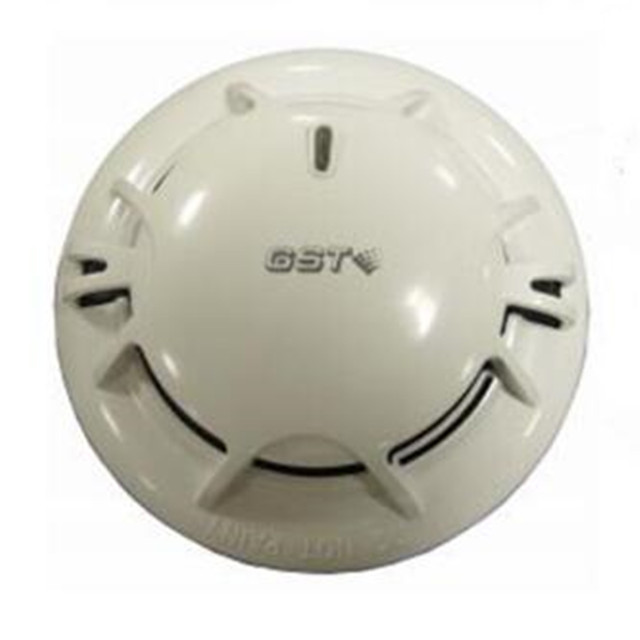

Product image

GST DC-9101E Conventional Combination Heat Photoelectric Smoke Detector
